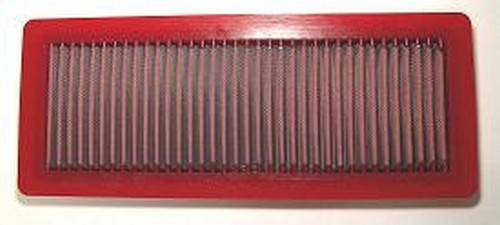

BMC 2017+ Vauxhall Grandland X 1.6 Turbo Replacement Panel Air Filter

The panel / cylindrical air filter is commonly referred to as "replacement air filter". It is installed in the vehicle's original airbox to replace the OEM air filter. It is made of highly performing materials that allow an increased air flow combined with a more efficient filtration, guaranteeing containment of all impurities from as small as 7 microns (compared to OEM's 10 microns).

BMC air filters are produced using a "Full Moulding" system that enables the characteristic red filter to be realized from a single mould with no welded joints thus avoiding easy breakage. The rubber used in BMC air filtering systems has a long life, is very durable and has optimum adhesion characteristics to all shapes of airboxes.

BMC filters are made of a multi-layered cotton gauze soaked with low viscosity oil covered with an epoxy coated alloy mesh to ensure protection from petrol fumes and oxidization due to air humidity.

All BMC air filters are pre-oiled, and they can be washed and regenerated by using the appropriate BMC regeneration kit.

ADDITIONAL INFORMATION

BMC 2017+ Vauxhall Grandland X 1.6 Turbo Replacement Panel Air Filter

FITMENT NOTES

CITRO�N
C4 1.6 16V THP 140 Automatic [From Ch. ORGA 11921] HP: 140 year: 08 > 10 engine code: EP6DT
C4 1.6 16V THP 150 [From Ch. ORGA 11921] HP: 150 year: 08 > 10 engine code: EP6DT
C4 II (B7) 1.6 THP 155 HP: 156 year: 10 > chassis: B7 engine code: EP6DT
C4 II (B7) 1.6 THP 160 HP: 163 year: 12 > chassis: B7 engine code: EP6CDTMD
C4 PICASSO II(B78)/GRAND C4 PICASSO II(B78) 1.6 THP 165 HP: 165 year: 14 > engine code: EP6FDT
C4 PICASSO II(B78)/GRAND C4 PICASSO II(B78) 1.6 THP 155 HP: 156 year: 13 > engine code: EP6CDT
C4 PICASSO/GRAND C4 PICASSO 1.6 16V THP 140 Automatic [From Ch. ORGA 11921] HP: 140 year: 08 > engine code: EP6DT
C4 PICASSO/GRAND C4 PICASSO 1.6 THP 155 HP: 156 year: 10 > engine code: EP6CDT
C4 PICASSO/GRAND C4 PICASSO 1.6 16V THP 150 [From Ch. ORGA 11921] HP: 150 year: 08 > engine code: EP6DT
C4 SEDAN 1.6 Turbo HP: 150 year: 13 > engine code: EP6DT
C4 SPACETOURER / GRAND SPACETOURER 1.6 THP 165 HP: 165 year: 18 > engine code: EP6FDT
C5 II 1.6 THP 155 HP: 156 year: 09 > engine code: EP6DT, EP6CDT
C5 II 1.6 VTi 120 HP: 120 year: 10 > engine code: EP6C
DS3 1.6 16V Racing HP: 207 year: 10> engine code: EP6DTS
DS3 1.6 16V Turbo HP: 156 year: 10 > engine code: EP6DT
DS3 1.6 THP 165 HP: 165 year: 14 > engine code: EP6FDT/FDTM
DS3 1.6 THP 208 HP: 208 year: 15 > engine code: 5GM (EP6FDTX)
DS4 / DS4 CROSSBACK 1.6 THP 155 HP: 156 year: 11 > engine code: EP6CDT
DS4 / DS4 CROSSBACK 1.6 THP 160 HP: 163 year: 12 > engine code: EP6CDTMD
DS4 / DS4 CROSSBACK 1.6 THP 165 HP: 165 year: 15 > engine code: EP6FDT/FDTM
DS4 / DS4 CROSSBACK 1.6 THP 200 HP: 200 year: 11 > engine code: EP6CDTX
DS4 / DS4 CROSSBACK 1.6 THP 210 HP: 211 year: 15 > engine code: EP6FDTX
DS5 1.6 THP 155 HP: 156 year: 11 > engine code: EP6CDT
DS5 1.6 THP 165 HP: 165 year: 12 > engine code: EP6CDT
DS5 1.6 THP 200 HP: 200 year: 11 > engine code: EP6CDTX
DS5 1.6 THP 210 HP: 210 year: 15 > engine code: 5GM (EP6FDTX)
DS7 CROSSBACK 1.6 PureTech 180 HP: 180 year: 18 > chassis: X74 engine code: EP6FADTXD
DS7 CROSSBACK 1.6 PureTech 225 HP: 225 year: 18 > chassis: X74 engine code: EP6FADTX
DS7 CROSSBACK 1.6 THP 165 HP: 165 year: 18 > chassis: X74 engine code: EP6FDT

MINI
MINI II (R55, R56, R57, R58, R59, R60, R61) 1.6 JCW HP: 211 year: 08 > chassis: R55, R56, R57, R58, R59, R60 engine code: N14B16, N18B16
MINI II (R55, R56, R57, R58, R59, R60, R61) 1.6 JCW HP: 218 year: 07 > chassis: R55, R56, R57, R58, R59, R60 engine code: N14B16, N18B16
MINI II (R55, R56, R57, R58, R59, R60, R61) 1.6 S Turbo HP: 163 year: 10 > chassis: R55, R56, R57, R58, R59, R60, R61 engine code: N18B16A
MINI II (R55, R56, R57, R58, R59, R60, R61) 1.6 S Turbo HP: 184 year: 10 > chassis: R55, R56, R57, R58, R59, R60, R61 engine code: N18B16A
MINI II (R55, R56, R57, R58, R59, R60, R61) 1.6 S Turbo HP: 190 year: 14 > chassis: R60, R61 engine code: N18B16A
MINI II (R55, R56, R57, R58, R59, R60, R61) 1.6 S Turbo HP: 200 year: 10 > chassis: R55, R56, R57, R58, R59, R60 engine code: N18B16A
MINI II (R55, R56, R57, R58, R59, R60, R61) 1.6 S Turbo [US and Korea Market] HP: 175 year: 06 > chassis: R55, R56, R57, R60 engine code: N18B16A
MINI II (R55, R56, R57, R58, R59, R60, R61) 1.6 S Turbo [US and Korea Market] HP: 192 year: 06 > chassis: R55, R56, R57, R60 engine code: N14B16A, N14B16AB

OPEL
GRANDLAND X 1.6 Turbo HP: 150 year: 17 > chassis: A18 engine code: A16NHT (EP6FDT)

PEUGEOT
207 / CC / SW 1.6 16V Turbo HP: 156 year: 09 > engine code: EP6DT
207 / CC / SW 1.6 16V Turbo [From Ch. ORGA 12169] HP: 150 year: 06 > 09 engine code: EP6DT (5FX)
208 1.6 GTI HP: 200 year: 12 > engine code: EP6CDTX
208 1.6 GTI 30th HP: 208 year: 14 > engine code: EP6CDTX
208 1.6 THP HP: 156 year: 12 > engine code: EP6CDT
208 1.6 THP HP: 163 year: 15 > engine code: EP6FDT
3008 1.6 THP [From Ch. ORGA 11921] HP: 150 year: 09> engine code: EP6DT, EP6CDTM
3008 1.6 THP [From Ch. ORGA 11921] HP: 155 year: 09 > engine code: EP6CDT
3008 1.6 THP 165 HP: 165 year: 14 > engine code: EP6FDT
3008 II 1.6 THP 150 HP: 150 year: 16 > chassis: P84 engine code: EP6FDT
3008 II 1.6 THP 165 HP: 165 year: 16 > chassis: P84 engine code: EP6FDT
308 1.6 16V Turbo HP: 156 year: 10 > engine code: EP6CDT
308 1.6 16V Turbo [From Ch. ORGA 11921] HP: 140 year: 07 > 10 engine code: EP6DT
308 1.6 16V Turbo [From Ch. ORGA 11921] HP: 150 year: 07 > 10 engine code: EP6DT
308 1.6 16V Turbo [From Ch. ORGA 11921] HP: 175 year: 08 > 10 engine code: EP6DTS
308 1.6 GTI HP: 200 year: 10 > engine code: EP6CDTX
308 II 1.6 GT THP 205 HP: 205 year: 14 > chassis: T9 engine code: EP6FDTX
308 II 1.6 GT THP 250 HP: 250 year: 15 > chassis: T9 engine code: EP6FDTR
308 II 1.6 GT THP 270 HP: 272 year: 15 > chassis: T9 engine code: EP6FDTR
308 II 1.6 PureTech 225 HP: 224 year: 18 > chassis: T9 engine code: EP6
308 II 1.6 THP 125 HP: 125 year: 13 > chassis: T9 engine code: EP6CDT
308 II 1.6 THP 150 HP: 150 year: 14 > chassis: T9 engine code: EP6FDTMD
308 II 1.6 THP 155 HP: 156 year: 13 > chassis: T9 engine code: EP6CDT
308 II 1.6 THP 163 HP: 163 year: 14 > chassis: T9 engine code: EP6FDTMD
408 1.6 Turbo HP: 150 year: 12 > engine code: EP6DT
5008 1.6 16V HP: 156 year: 09 > engine code: EP6CDT
5008 1.6 THP 150 HP: 150 year: 12 > engine code: EP6CDT
5008 1.6 THP 163 HP: 163 year: 12 > engine code: EP6CDT
5008 1.6 THP 165 HP: 165 year: 12 > engine code: EP6FDT
5008 (P87) 1.6 THP 165 HP: 165 year: 17 > engine code: EP6FDT
508 1.6 THP HP: 156 year: 10 > engine code: EP6CDT
508 1.6 THP HP: 165 year: 12 > engine code: EP6CDTM, EP6FDT
508 II (R8) 1.6 PureTech 180 HP: 181 year: 18 > engine code: EP6F
508 II (R8) 1.6 PureTech 225 HP: 224 year: 18 > engine code: EP6FADTX
RCZ 1.6 16V HP: 156 year: 10 > engine code: EP6CDT
RCZ 1.6 16V HP: 200 year: 10 > engine code: EP6CDTX
RCZ 1.6 16V 270 HP: 270 year: 13 > engine code: EP6CDTR
RCZ 1.6 THP 150 HP: 150 year: 11 > engine code: EP6CDTDM

VAUXHALL
GRANDLAND X 1.6 Turbo HP: 150 year: 17 > chassis: A18 engine code: A16NHT (EP6FDT)
