BMC Audi A3 (8L) 1.9 TDI Carbon Dynamic Airbox Kit

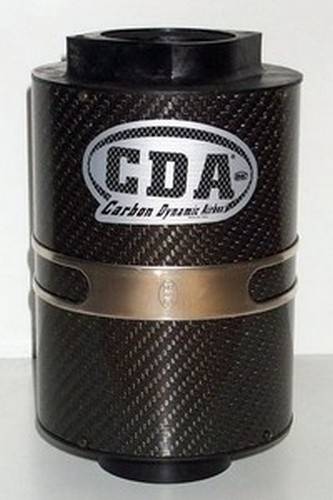

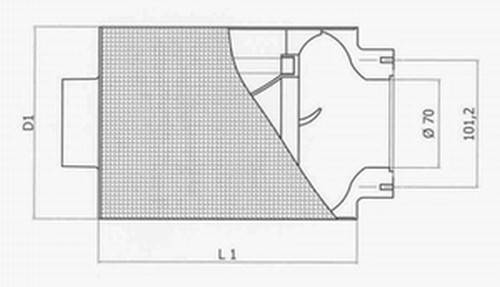

The CDA filtering system is composed of a cylindrical carbon fibre airbox containing a washable filtering element. The choice of this composite material is due to the fact that carbon has low thermal conductivity allowing insulation from the engine heat to the aspirated air. Replacing the original airbox with the CDA, fresh air is channelled directly to the filter, thermally insulated inside the carbon airbox and then conveyed to the engine through an air flow deflector with minimum loss of power

The CDA filtration system is connected to a frontal air intake via a flexible aluminum tube. Thanks to the dynamic air intake you get a real supercharging system that conveys fresh air to the air box at a speed and capacity greater than that of traditional systems. The air flow entering the dynamic air intake is accelerated further thanks to the air flow deflector inside the carbon fibre airbox. Dynamic over-boosting, greater air flow, higher pressure and colder air are the elements which help to significantly increase the performance of the engine both in terms of power and torque

ADDITIONAL INFORMATION

BMC Audi A3 (8L) 1.9 TDI Carbon Dynamic Airbox Kit

FITMENT NOTES

AUDI
80 IV (B4) 2.8 / Quattro 174 HP 91 > 94 HP: 174 year: 91 > 94
A3 (8L) 1.8 T / Quattro HP: 150 year: 96>03
A3 (8L) 1.8 T / Quattro HP: 180 year: 96>03
A3 (8L) 1.9 TDI HP: 110 year: 96 > 01
A3 (8L) 1.9 TDI HP: 90 year: 96 > 01
A4 (8D, B5) 1.8 T / Quattro HP: 180 year: 97 > 00
A4 (8D, B5) 1.9 TDI HP: 75 year: 95 > 00
A4 (8D, B5) 1.9 TDI HP: 90 year: 95 > 00
A4 (8D, B5) 1.9 TDI / Quattro HP: 110 year: 95 > 00
A6 (4B/C5) 1.8 T / Quattro HP: 150 year: 97 > 05
A6 (4B/C5) 1.8 T / Quattro HP: 180 year: 97 > 05
TT I (8N) 1.8 T / Quattro HP: 180 year: 98 > 06
TT I (8N) 1.8 T 150 HP 02 > 06 HP: 150 year: 02 > 06

CHRYSLER
PT CRUISER 2.2 CRD HP: 121 year: 01 > 10

FIAT
STILO / STILO MULTI WAGON (192) 2.4 20V 5 Cyl. Abarth HP: 170 year: 01 > 10

PEUGEOT
306 2.0 HDi HP: 90 year: 99 >

SEAT
IBIZA II 1.9 TDI HP: 110 year: 99 > 02
IBIZA II 1.9 TDi HP: 90 year: 99 > 02
LEON I 1.8 20V T CUPRA HP: 180 year: 99 > 05
LEON I 1.9 TDI HP: 101 year: 05 > 06
LEON I 1.9 TDI HP: 110 year: 99 > 05
LEON I 1.9 TDI HP: 90 year: 99 > 05

SKODA
OCTAVIA I 1.8 Turbo / 4x4 HP: 150 year: 96 > 10
OCTAVIA I 1.8 Turbo RS HP: 180 year: 01 > 10

VOLKSWAGEN
BORA (A4) 1.9 TDI Cabrio HP: 110 year: 98 > 02
BORA (A4) 1.9 TDI Cabrio HP: 90 year: 98 > 02
CL�SICO (A4) 1.8 GTI HP: 180 year: 01 > 05
CL�SICO (A4) 1.8 T HP: 150 year: 97 > 05
CL�SICO (A4) 1.9 TDI HP: 110 year: 97 > 04
CL�SICO (A4) 1.9 TDI / 4-motion HP: 101 year: 00 > 05
CL�SICO (A4) 1.9 TDI / 4-motion HP: 115 year: 98 > 01
CL�SICO (A4) 1.9 TDI / 4-motion HP: 90 year: 97 > 04
CL�SICO (A4) 1.9 TDI Cabrio HP: 110 year: 98 > 02
CL�SICO (A4) 1.9 TDI Cabrio HP: 90 year: 98 > 02
GOLF IV (1J1, 1J5) 1.8 GTI HP: 180 year: 01 > 05
GOLF IV (1J1, 1J5) 1.8 Turbo HP: 150 year: 97 > 05
GOLF IV (1J1, 1J5) 1.9 TDI HP: 110 year: 97 > 04
GOLF IV (1J1, 1J5) 1.9 TDI / 4-motion HP: 101 year: 00 > 05
GOLF IV (1J1, 1J5) 1.9 TDI / 4-motion HP: 115 year: 98 > 01
GOLF IV (1J1, 1J5) 1.9 TDI / 4-motion HP: 90 year: 97 > 04
GOLF IV (1J1, 1J5) 1.9 TDI Cabrio HP: 110 year: 98 > 02
GOLF IV (1J1, 1J5) 1.9 TDI Cabrio HP: 90 year: 98 > 02
JETTA IV (162) 1.8 GTI HP: 180 year: 01>05
JETTA IV (162) 1.9 TDI Cabrio HP: 110 year: 98 > 02
JETTA IV (162) 1.9 TDI Cabrio HP: 90 year: 98 > 02
JETTA IV (A4) 1.8 T HP: 150 year: 97 > 05
NEW BEETLE / NEW BEETLE CABRIO 1.8 Turbo HP: 150
PASSAT (3B2/3B5) 1.8 Turbo HP: 150 year: 96 > 00
SHARAN I (7M) 1.8 T HP: 150 year: 97 > 10

VOLVO
V 70 2.4 i GLT HP: 144 year: 97 > 00
V 70 2.4i GLT HP: 170 year: 97 > 00
