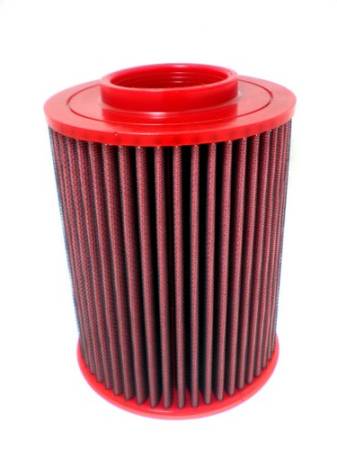

BMC 07-10 Ford C-Max 1.6L Replacement Cylindrical Air Filter

FB559/08
Not Available
Availability: Usually ships within 24 hours
Was: $90.20
Sale: $74.86
Save: 17%
Save: $15.34

Description

The panel / cylindrical air filter is commonly referred to as "replacement air filter". It is installed in the vehicle's original airbox to replace the OEM air filter. It is made of highly performing materials that allow an increased air flow combined with a more efficient filtration, guaranteeing containment of all impurities from as small as 7 microns (compared to OEM's 10 microns).

BMC air filters are produced using a "Full Moulding" system that enables the characteristic red filter to be realized from a single mould with no welded joints thus avoiding easy breakage. The rubber used in BMC air filtering systems has a long life, is very durable and has optimum adhesion characteristics to all shapes of airboxes.

BMC filters are made of a multi-layered cotton gauze soaked with low viscosity oil covered with an epoxy coated alloy mesh to ensure protection from petrol fumes and oxidization due to air humidity.

All BMC air filters are pre-oiled, and they can be washed and regenerated by using the appropriate BMC regeneration kit.

Additional Information

BMC 07-10 Ford C-Max 1.6L Replacement Cylindrical Air Filter

Compatible Vehicles

Fitment Notes

FORD
C-MAX 1.6 HP: 100 year: 07 > 10 engine code: Duratec
C-MAX 1.6 TDCi HP: 101 year: 07 > 10 engine code: Duratorq
C-MAX 1.6 TDCi HP: 109 year: 07 > 10 engine code: Duratorq
C-MAX 1.6 TDCi HP: 90 year: 07 > 10 engine code: Duratorq
C-MAX 1.8 16V, 1.8 Flexifuel HP: 125 year: 07 > 10 engine code: Duratec
C-MAX 1.8 TDCi HP: 115 year: 07 > 10 engine code: Duratorq
C-MAX 2.0 TDCi HP: 110 year: 07 > 10 engine code: Duratorq
C-MAX 2.0 TDCi HP: 133 year: 07 > 10 engine code: Duratorq
C-MAX 2.0 TDCi HP: 136 year: 07 > 10 engine code: Duratorq
C-MAX 2.0, Bi-fuel CNG HP: 145 year: 07 > 10 engine code: Duratec
C-MAX II, GRAND C-MAX 1.0 EcoBoost HP: 100 year: 12 > engine code: 10FDOX
C-MAX II, GRAND C-MAX 1.0 EcoBoost HP: 125 year: 12 > engine code: C10FDOX
C-MAX II, GRAND C-MAX 1.5 EcoBoost HP: 150 year: 15 >
C-MAX II, GRAND C-MAX 1.5 EcoBoost HP: 182 year: 15 >
C-MAX II, GRAND C-MAX 1.5 TDCi HP: 105 year: 15 > engine code: 15DSOX
C-MAX II, GRAND C-MAX 1.5 TDCi HP: 120 year: 15 > engine code: 15DSOX
C-MAX II, GRAND C-MAX 1.5 TDCi HP: 95 year: 15 > engine code: 15DSOX
C-MAX II, GRAND C-MAX 1.6 HP: 105 year: 10 > engine code: Duratec
C-MAX II, GRAND C-MAX 1.6 HP: 125 year: 10 > engine code: Duratec
C-MAX II, GRAND C-MAX 1.6 EcoBoost HP: 150 year: 10 >
C-MAX II, GRAND C-MAX 1.6 EcoBoost SCTi HP: 182 year: 10 >
C-MAX II, GRAND C-MAX 1.6 TDCi HP: 115 year: 10 > engine code: Duratorq
C-MAX II, GRAND C-MAX 1.6 TDCi HP: 95 year: 10 > engine code: Duratorq
C-MAX II, GRAND C-MAX 1.6, 1.6 Flexifuel HP: 85 year: 10 > engine code: Duratec
C-MAX II, GRAND C-MAX 1.6, 1.6 LPG, 1.6 CNG HP: 120 year: 12 > engine code: Duratec
C-MAX II, GRAND C-MAX 2.0 TDCi HP: 115 year: 10 > engine code: Duratorq
C-MAX II, GRAND C-MAX 2.0 TDCi HP: 136 year: 11 > engine code: Duratorq
C-MAX II, GRAND C-MAX 2.0 TDCi HP: 140 year: 10 > engine code: Duratorq
C-MAX II, GRAND C-MAX 2.0 TDCi HP: 150 year: 15 >
C-MAX II, GRAND C-MAX 2.0 TDCi HP: 163 year: 10 > engine code: Duratorq
C-MAX II, GRAND C-MAX 2.0 TDCi HP: 170 year: 15 > engine code: Duratorq
FOCUS CABRIOLET 1.6 16V HP: 100 year: 04/07 > 10 engine code: Duratec
FOCUS CABRIOLET 2.0 16V HP: 145 year: 04/07 > 10 engine code: Duratec
FOCUS CABRIOLET 2.0 TDCI HP: 90 year: 04/07 > 10 engine code: Duratorq
FOCUS II 1.4 16V HP: 80 year: 04 / 07 engine code: Duratec
FOCUS II 1.6 16V HP: 100 year: 04 / 07 engine code: Duratec (G8DC)
FOCUS II 1.6 16V Ti-VCT HP: 115 year: 04 / 07 engine code: Duratec
FOCUS II 1.6 TDCi HP: 100 year: 04 / 07 engine code: Duratorq
FOCUS II 1.6 TDCi HP: 109 year: 04 / 07 engine code: Duratorq
FOCUS II 1.6 TDCi HP: 90 year: 04 / 07 engine code: Duratorq
FOCUS II 1.8 16V, 1.8 Flexifuel HP: 125 year: 04 / 07 engine code: Duratec
FOCUS II 1.8 TDCi HP: 115 year: 04 / 07 engine code: Duratorq
FOCUS II 2.0 16V HP: 145 year: 04 / 07 engine code: Duratec
FOCUS II 2.0 TDCi HP: 110 year: 05 / 07 engine code: Duratorq
FOCUS II 2.0 TDCi HP: 136 year: 04 / 07 engine code: Duratorq
FOCUS II 2.5 RS HP: 305 year: 09 >
FOCUS II 2.5 RS 500 HP: 350 year: 10 >
FOCUS III 1.0 EcoBoost HP: 100 year: 12 > engine code: 10FDOX (Fox)
FOCUS III 1.0 EcoBoost HP: 125 year: 12 > engine code: 10FDOX (Fox)
FOCUS III 1.5 EcoBoost HP: 150 year: 14 >
FOCUS III 1.5 EcoBoost HP: 182 year: 14 >
FOCUS III 1.5 TDCI HP: 105 year: 14 > engine code: SOHC-DI-TC-DV5
FOCUS III 1.5 TDCI HP: 120 year: 14 > engine code: SOHC-DI-TC-DV5
FOCUS III 1.5 TDCI HP: 95 year: 14 > engine code: SOHC-DI-TC-DV5
FOCUS III 1.6 EcoBoost SCTi HP: 150 year: 11 > 14 engine code: Sigma
FOCUS III 1.6 EcoBoost SCTi HP: 182 year: 11 > 14 engine code: Sigma
FOCUS III 1.6 TDCi HP: 115 year: 11 > engine code: SOHC-DV6
FOCUS III 1.6 TDCi HP: 95 year: 11 > engine code: SOHC-DV6
FOCUS III 1.6 TDCi Econetic HP: 105 year: 12 > engine code: SOHC-DV6C
FOCUS III 1.6 Ti- VCT Flexifuel HP: 120 year: 11 > engine code: Zetec-S
FOCUS III 1.6 Ti- VCT LPG HP: 117 year: 11 > engine code: Zetec-S
FOCUS III 1.6 Ti-VCT HP: 105 year: 11 > engine code: Zetec-S
FOCUS III 1.6 Ti-VCT HP: 125 year: 11 > engine code: Zetec-S
FOCUS III 1.6 Ti-VCT HP: 86 year: 11 > engine code: Zetec-S
FOCUS III 2.0 HP: 150 year: 13 >
FOCUS III 2.0 EcoBoost ST HP: 250 year: 12 >
FOCUS III 2.0 TDCi HP: 115 year: 11 > engine code: Duratorq
FOCUS III 2.0 TDCi HP: 140 year: 11 > engine code: Duratorq
FOCUS III 2.0 TDCi HP: 150 year: 14 > engine code: Duratorq
FOCUS III 2.0 TDCi HP: 163 year: 11 > engine code: Duratorq
FOCUS III 2.0 TDCi ST HP: 185 year: 14 > engine code: Duratorq
FOCUS III 2.3 RS Turbo HP: 349 year: 16 >
KUGA I 2.0 TDCi HP: 136 year: 08 > 10 engine code: Duratorq DI 2.0
KUGA I 2.0 TDCi HP: 140 year: 10 >
KUGA I 2.0 TDCi HP: 163 year: 10 >
KUGA II 1.5 EcoBoost HP: 120 year: 16 >
KUGA II 1.5 EcoBoost HP: 150 year: 14 >
KUGA II 1.5 EcoBoost HP: 182 year: 14 >
KUGA II 1.5 TDCI HP: 120 year: 16 >
KUGA II 1.6 EcoBoost SCTi HP: 150 year: 13 > engine code: Sigma
KUGA II 1.6 EcoBoost SCTi HP: 182 year: 13 > engine code: Sigma
KUGA II 2.0 TDCI HP: 116 year: 13 > engine code: Duratorq
KUGA II 2.0 TDCI HP: 120 year: 14 > engine code: Duratorq
KUGA II 2.0 TDCI HP: 140 year: 13 > engine code: Duratorq
KUGA II 2.0 TDCI HP: 150 year: 14 > engine code: Duratorq
KUGA II 2.0 TDCI HP: 163 year: 13 > engine code: Duratorq
KUGA II 2.0 TDCI HP: 180 year: 14 > engine code: Duratorq
TOURNEO CONNECT II / GRAND TOURNEO CONNECT 1.0 EcoBoost HP: 100 year: 13 > chassis: CHC engine code: 10FDSOX
TOURNEO CONNECT II / GRAND TOURNEO CONNECT 1.5 TDCi HP: 101 year: 15 > chassis: CHC engine code: 15DSOX
TOURNEO CONNECT II / GRAND TOURNEO CONNECT 1.5 TDCi HP: 120 year: 15 > chassis: CHC engine code: 15DSOX
TOURNEO CONNECT II / GRAND TOURNEO CONNECT 1.5 TDCi HP: 75 year: 15 > chassis: CHC engine code: 15DSOX
TOURNEO CONNECT II / GRAND TOURNEO CONNECT 1.6 EcoBoost HP: 150 year: 13 > chassis: CHC engine code: Sigma
TOURNEO CONNECT II / GRAND TOURNEO CONNECT 1.6 TDCi HP: 115 year: 13 > chassis: CHC engine code: SOHC-DV6
TOURNEO CONNECT II / GRAND TOURNEO CONNECT 1.6 TDCi HP: 75 year: 13 > chassis: CHC engine code: SOHC-DV6
TOURNEO CONNECT II / GRAND TOURNEO CONNECT 1.6 TDCi HP: 95 year: 13 > chassis: CHC engine code: SOHC-DV6
TRANSIT CONNECT II (CHC) 1.0 EcoBoost HP: 100 year: 13 > chassis: CHC engine code: 10FDOX (Fox)
TRANSIT CONNECT II (CHC) 1.5 TDCI HP: 101 year: 15 > chassis: CHC engine code: 15DSOX
TRANSIT CONNECT II (CHC) 1.5 TDCI HP: 120 year: 15 > chassis: CHC engine code: 15DSOX
TRANSIT CONNECT II (CHC) 1.5 TDCI HP: 75 year: 15 > chassis: CHC engine code: 15DSOX
TRANSIT CONNECT II (CHC) 1.6 EcoBoost HP: 150 year: 13 > chassis: CHC engine code: Sigma
TRANSIT CONNECT II (CHC) 1.6 TDCi HP: 115 year: 13 > chassis: CHC engine code: SOHC-DV6
TRANSIT CONNECT II (CHC) 1.6 TDCi HP: 75 year: 13 > chassis: CHC engine code: SOHC-DV6
TRANSIT CONNECT II (CHC) 1.6 TDCi HP: 95 year: 13 > chassis: CHC engine code: SOHC-DV6

MAZDA
3 (BL) 1.6 CD HP: 109 year: 08 > chassis: BL
3 (BL) 1.6 MZ-CD HP: 115 year: 10 > chassis: BL
5 (CW) 1.6 CD HP: 116 year: 10 > chassis: CW

VOLVO
C 30 1.6 HP: 100 year: 07 > 10 engine code: B4164S3
C 30 1.6 D2 HP: 114 year: 10 > engine code: D4162T
C 30 1.6 Diesel HP: 109 year: 07 > 10 engine code: D4164T
C 30 1.8 / 1.8 Flexifuel HP: 125 year: 07 > 09 engine code: B4184S11 / S8
C 30 2.0 / 2.0 Flexifuel HP: 145 year: 07 > engine code: B4204S3 / B4204S4
C 30 2.0 Diesel HP: 136 year: 07 > 10 engine code: D4204T
C 70 II 2.0 Diesel HP: 136 year: 08 > engine code: D4204T
S 40 II 1.6 HP: 100 year: 06/07 > engine code: B4164S3
S 40 II 1.6 D2 HP: 114 year: 10 > engine code: D4162T
S 40 II 1.6 Diesel HP: 109 year: 06/07 > 10 engine code: D4164T
S 40 II 1.8 / 1.8 Flexifuel HP: 125 year: 06/07 > 09 engine code: B4184S11 / S8
S 40 II 2.0 HP: 145 year: 06/07 > engine code: B4204S3
S 40 II 2.0 Diesel HP: 136 year: 07 > engine code: D4204T
V 40 II / Cross Country 1.6 D2 HP: 115 year: 12 > engine code: D4162T
V 40 II / Cross Country 1.6 T2 HP: 120 year: 13 > engine code: B4164T4
V 40 II / Cross Country 1.6 T3 HP: 150 year: 12 > engine code: B4164T3
V 40 II / Cross Country 1.6 T4 HP: 180 year: 12 > engine code: B4164T
V 50 1.6 HP: 100 year: 06/07 > engine code: B4164S3
V 50 1.6 D2 HP: 114 year: 10 > engine code: D4162T
V 50 1.6 Diesel HP: 109 year: 06/07 > engine code: D4164T
V 50 1.8 / 1.8 Flexifuel HP: 125 year: 06/07 > engine code: B4184S11 / S8
V 50 2.0 / 2.0 Flexifuel HP: 145 year: 06/07 > engine code: B4204S3 / B4204S4
V 50 2.0 Diesel HP: 136 year: 06/07 > engine code: D4204T

Shipping Information

  • Item Requires Shipping
  • 2.0 lbs.
  • W7.3000” x H7.6000” x L8.3000”
  • Free Shipping!
