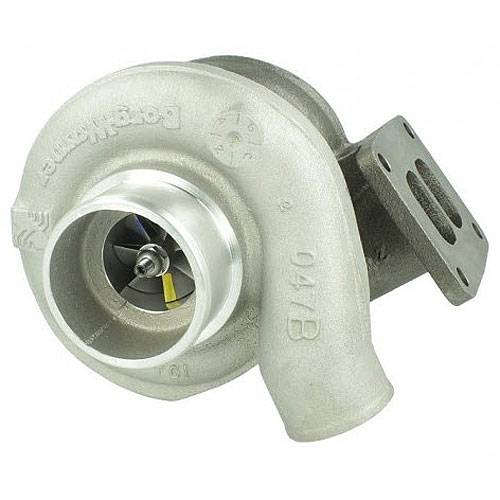

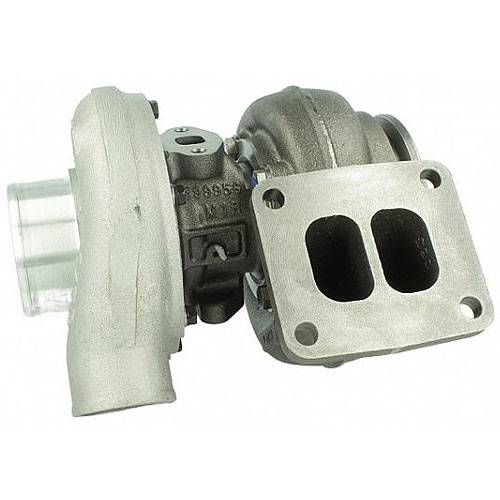

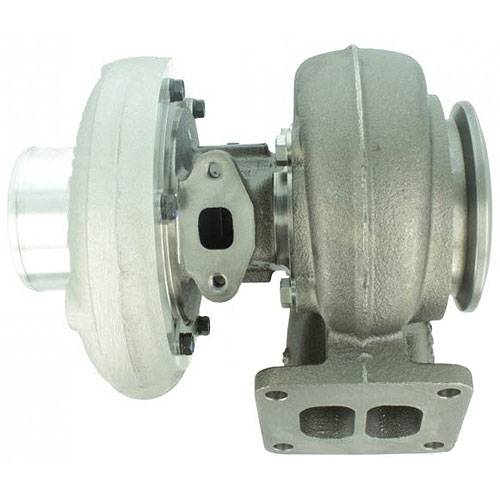

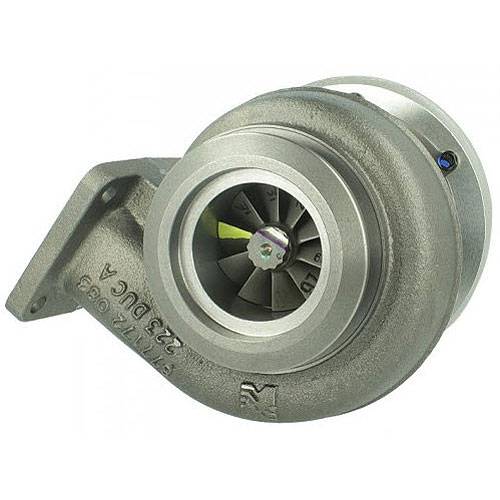

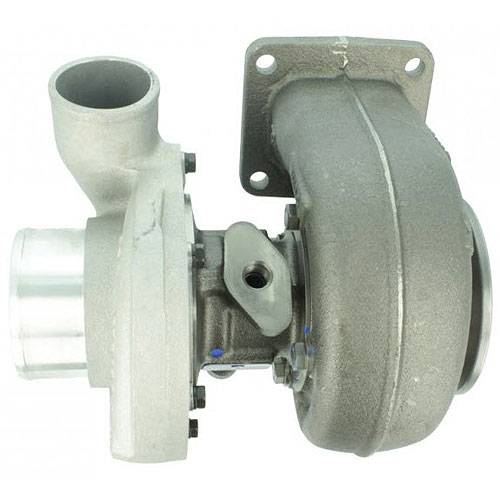

BorgWarner Airwerks: Turbocharger SX S200SX-56 T4 A/R 1.22 56mm Ind. Twin Scroll

Airwerks Series Turbochargers

Simple. Scalable. Strong.

Airwerks turbochargers are designed for the competitive motorsports market as well as drivers retrofitting a naturally aspirated engine or looking for a little more performance from a factory turbocharged car.

Engineered specifically for drag racing, pulling and road racing, AirWerks turbochargers have earned a reputation as robust, brute-force induction systems. Looking for a no-frills replacement? Want to upgrade your turbocharger? Working with limited space? BorgWarner's AirWerks turbochargers are the perfect go-to product for many applications.

With a twin hydrodynamic journal bearing design, AirWerks turbochargers feature an effective high-pressure ratio compressor stage, extended-tip technology and a high-efficiency turbine stage. The configuration provides ultra-fast response and more than 70 PSI of boost.

ADDITIONAL INFORMATION

Description/Model: Turbocharger
Series: SX
Spec: S200

Quick Specs:

Bearing Housing Material: Cast Iron
Comp Wheel Inducer (in): 2.2 (55.8mm)
Comp Wheel OD (in): 3
HP Range: 220-580
Turbine Config: VTF
Turbine Housing A/R: 1.22
Turbine Housing Inlet: T4 Bolt Pattern / T3 Volute Opening
Turbine Wheel Exducer (in): 2.42 (61mm)
Turbine Wheel OD (in): 2.74 (70mm)

FITMENT NOTES

None
