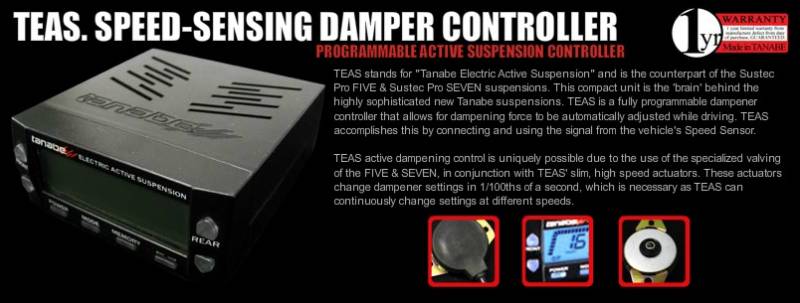

TEAS stands for "Tanabe Electric Active Suspension" and is the counterpart of the Sustec Pro FIVE & Sustec Pro SEVEN suspensions. This compact unit is the 'brain' behind the highly sophisticated new Tanabe suspensions. TEAS is a fully programmable dampener controller that allows for dampening force to be automatically adjusted while driving. TEAS accomplishes this by connecting and using the signal from the vehicle's Speed Sensor.
TEAS active dampening control is uniquely possible due to the use of the specialized valving of the FIVE & SEVEN, in conjunction with TEAS' slim, high speed actuators. These actuators change dampener settings in 1/100ths of a second, which is necessary as TEAS can continuously change settings at different speeds.
FOR ANY ROAD, BE IT A CIRCUIT, CITY STREET, OR WINDING ROAD, THERE IS USUALLY NEVER ONE SINGLE PERFECT SUSPENSION SETTING THROUGHOUT THE COURSE. The perfect damper setting for high-speed cornering may be unfavorable for low- speed hairpins. TEAS allows the driver to program our coilovers to deliver best of both worlds -- perfect high- speed stability and maximum hairpin agility -- automatically.
takes readings from the vehicle speed sensor to automatically make dampening changes. When programming TEAS, you may program up to 9 "triggers" that activate when you reach a variety of speeds. Increments of as little as 5mph can trigger a damper setting change.
Once Active Mode is programmed and turned on, TEAS will automatically adjust settings as you drive.
allows front and rear damper settings to be individually adjusted by manual input or recalled from any of four saved settings. Additionally, Manual Mode settings can be used as base maps for Active Mode.
High Speed Actuators
Because the TEAS unit is an ACTIVE suspension controller that can continuously change dampener settings, the speed of the actuators is key. TEAS actuators are designed to change settings in an amazing 0.013seconds. (1/100ths of a second)
Exceeds OEM Standards for Quality
Some new luxury vehicles have actuators on their suspensions to switch from Normal to Sport suspension. TEAS' actuators exceeds these automakers in quality and reliability. The ultra slim profile actuators have a protective boot, and the actuators are made of metal, instead of the bulky inexpensive plastic used by some competitor brands.
Ultra Silent Actuation
Other manufacturers have extremely noisy actuators since their units are not active, and must be manually adjusted. TEAS has settings to have an audible beep for dampener changes, with volume settings, and logically, an OFF option for quiet operation.
TEAS uses onboard flash memory to store settings. This onboard memory means that memory settings can be saved and recalled, even when the battery is disconnected. TEAS can store four manual mode presets which also work as Active Mode "base maps." One Active mode program may be saved for a total of Eight settings. TEAS also has backup memory onboard, should you wish to restore default settings.
High Contrast LED Backlight
TEAS uses a high contrast LCD display for easy reading. Blue LED backlights can brighten and dim for simply, trouble free night and day usage.
Speed Signal Sensitivity Adjustment
TEAS is a passive system that connects to and reads many different speed signals, and has calibration options to adapt to the speed signal of an vehicle. Since many cars are equipped with aftermarket stereos, amplifiers, and other hi-interference devices, TEAS has the option of adjusting sensitivity, to prevent getting false electronic signals and interference from these types of devices.
Notes: For use with Sustec Pro Five
